OVERPASS K1438 AT GINGEN
NEW CONSTRUCTION
client
Regional Council Stuttgart
description

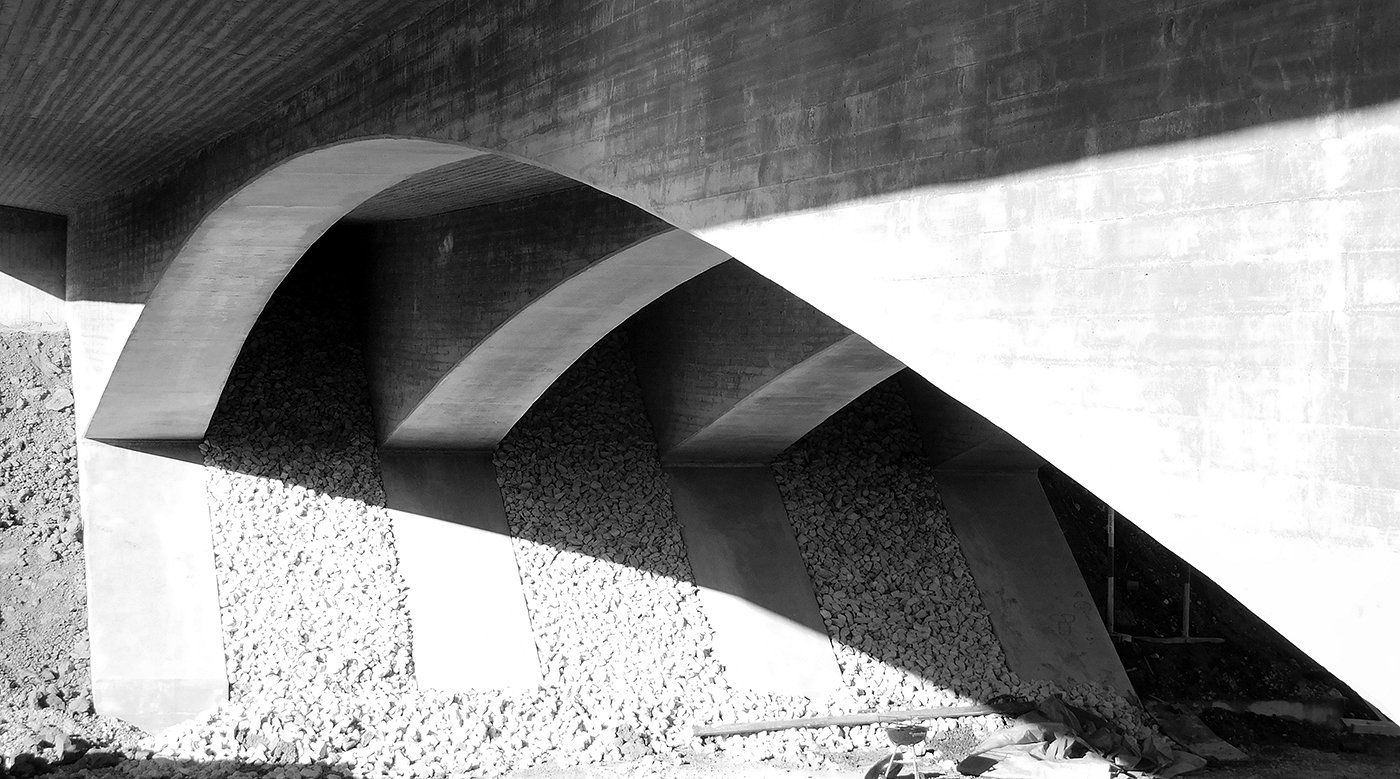

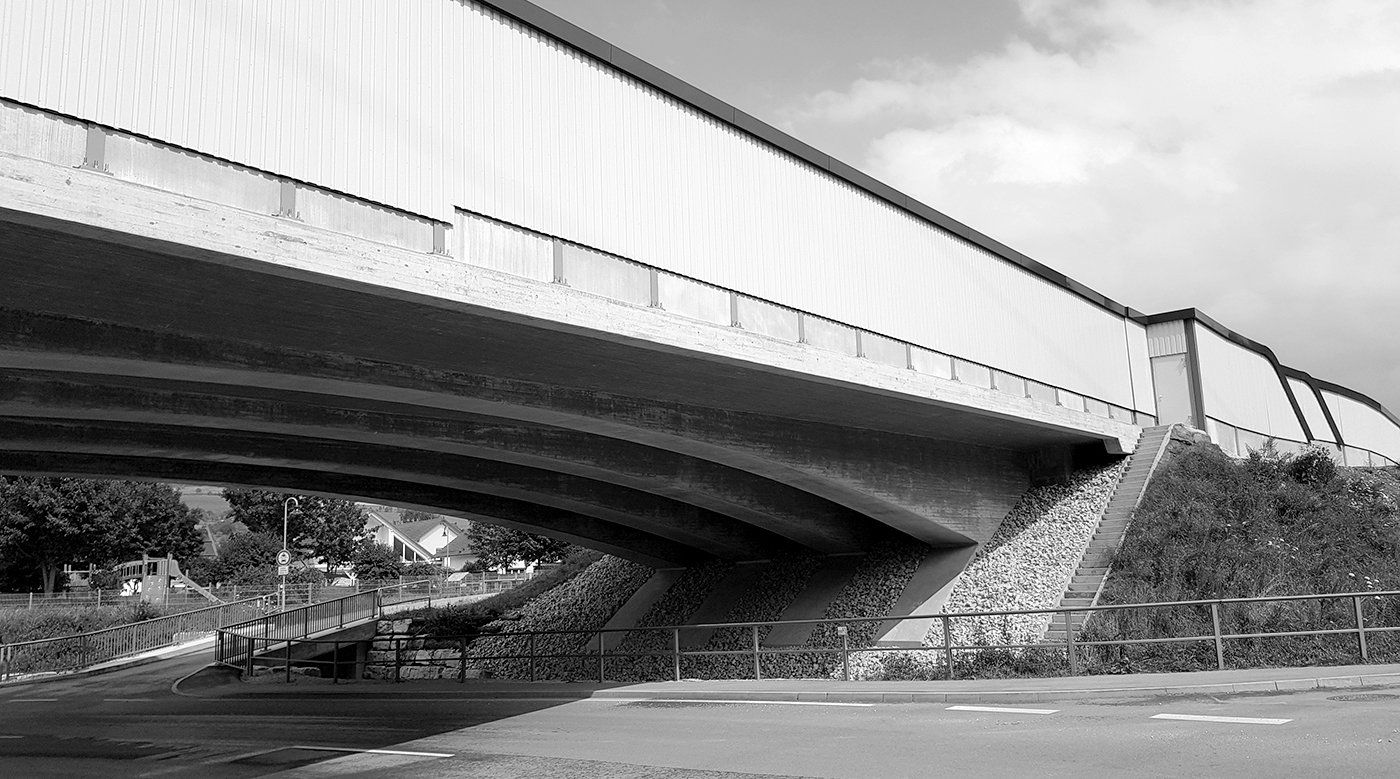

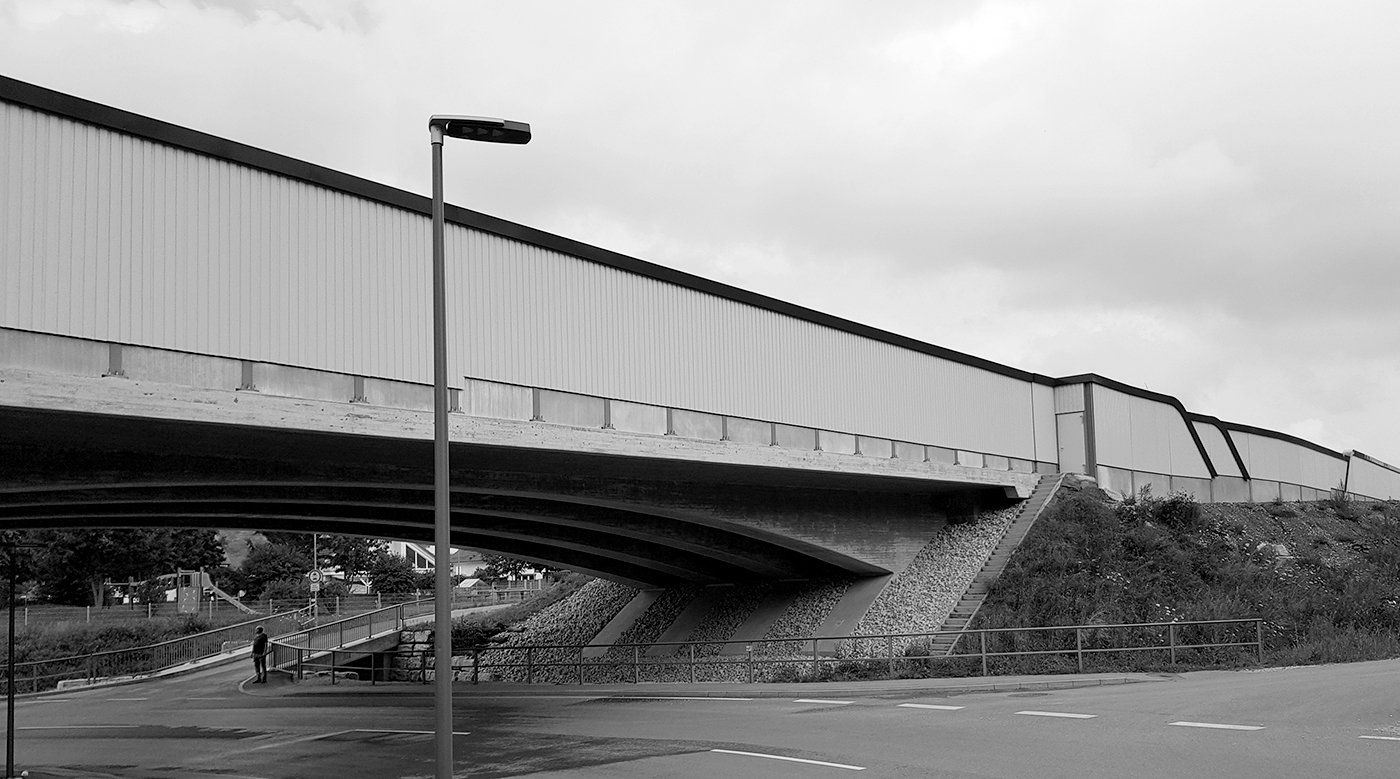

In the course of the multi-lane expansion of the B10 near Gingen, the BW 16 transfers the B10 over the district road using a single-span, longitudinally prestressed frame structure with a clear width of 38.0 m. The cross-section is a four-bar T-beam
designed and has a variable height between 3.10 m at the frame corner and 0.75 m in the center of the bay. The width between the railings is 16.60 m. The structure is founded on large bored piles with a diameter of 1.20 m. There is a drag plate at the end of the structure.
Period
2014-2015
Services
Preparing the building design - RAB-ING
Participation in the preparation of the award
